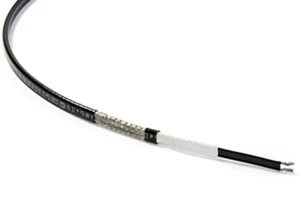

Raychem 8BTV2-CT Self Regulating Trace Heating Cable
Electrical heat-tracing for frost protection without steam cleaning.
The nVent RAYCHEM BTV-family of self-regulating, parallel circuit heating cables is used for frost protection of pipes and vessels.
It can also be used for process temperature maintenance up to 65°C.
Application
Area Classification:
- Hazardous, Zone 1, Zone 2 (Gas), Zone 21, Zone 22 (Dust)
- Ordinary
Traced surface type:
- Carbon Steel
- Stainless Steel
- Plastic
- Painted or unpainted metal
Chemical resistance:
- For organic corrosives: use -CT (fluoropolymer outer jacket)
- For mild inorganic solutions: use -CR (modified polyolefin outer jacket)
- For aggressive organics and corrosives consult your local Pentair representative
Approvals
The BTV heating cables are approved for use in hazardous areas by PTB and Baseefa Ltd.
- PTB 09 ATEX 1115 X & Baseefa06ATEX0183X
- II 2 G Ex e II T6 & II 2 D Ex tD A21 IP66 T80°C
- IECEx PTB 09.0056X & IECEx BAS 06.0043X
- Ex e II T6 & Ex tD A21 IP66 T80°C
The BTV heating cables are approved by DNV for use on ships and mobile offshore units. DNV Certificate No. E-11564
| Electrical Protection Sizing | Start Up Temperature | Maximum Heating Cable length per circuit(M) | |||
|---|---|---|---|---|---|
| 16 A | -20°c | 155 | 110 | 70 | 45 |
| +10°c | 200 | 160 | 110 | 65 | |
| 25 A | -20°c | 195 | 140 | 90 | 55 |
| +10°c | 200 | 160 | 125 | 85 | |
| 32 A | -20°c | 200 | 160 | 110 | 70 |
| +10°c | 200 | 160 | 125 | 105 | |
| 40 A | -20°c | 200 | 160 | 125 | 90 |
| +10°c | 200 | 160 | 125 | 110 | |
The above numbers are for circuit length estimation only. For more detailed information please use the Pentair TraceCalc software or Contact your local Pentair representative.
Pentair requires the use of a 30 mA residual current device to provide maximum safety and protection from ï¬Âre.
Where design results in higher leakage current, the preferred trip level for adjustable devices is 30 mA above any inherent capacitive leakage characteristic of the heater as speciï¬Âed by the trace heater supplier or alternatively, the next common available trip level for non adjustable devices, with a maximum of 300 mA. All safety aspects need to be proven.
Technical specifications
| Brand | nVent |
|---|---|
| Maximum maintain or continuous exposure temperature (power on) | 65 °C |
| Minimum bend radius | At 20°C: 13 mm |
| Minimum installation temperature | -60 °C |
| Model | 8BTV2-CT |
| Nominal power output | 25 W/m at 10 °C |
| Temperature classification | T4 in accordance with European Standard EN 60079-30-1 5.1.13 |
| Thickness | 5.5 mm |
| Width | 15.4 mm |
