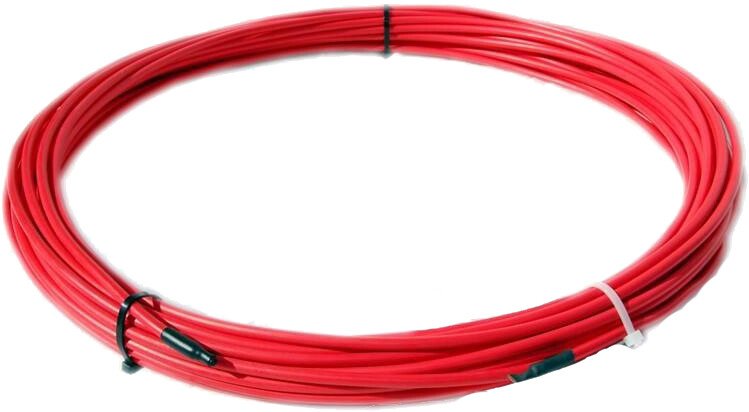

Raychem EM-MI-PACK-36m Constant Wattage Trace Heating Cable
EM2-MI is a constant output heating cable for simple, fast, and effective ramp and accessway heating to prevent snow and ice formation.
The pre-terminated EM2-MI cable comes complete with 3m cold leads at each end of the heater, removing the need for on-site termination activities. Simply install the heater over the required area and connect the cold leads to the junction box and “Smart” control unit.
The EM2-MI heating cable is designed for installation in high temperature applications. The product can be installed directly under hot-poured asphalt followed by mechanical high pressure roller.
Design Phase
- Simple design.
- Variable power output dependent upon cable spacing (up to 300W/m²)
- Variety of sizes available to meet project requirements.
Installation Phase
- Pre-terminated heating mat requires no onsite cold lead or end seal connections.
- Heating cable can be fixed to an existing reinforcement bar or with fixing strips from Pentair Thermal Management.
- Extremely robust and resistant to installation damage.
The Applications
- Excellent for irregular shaped areas.
- Vehicle access ways and loading bays.
- Applications under hot-poured asphalt.
Technical specifications
| Brand | nVent |
|---|---|
| Cable outer diameter | 6mm |
| Cold lead length | 3 m |
| Colour | Red |
| Conductor material | Copper |
| Length | 36 m |
| Max exposure temperature | 90°C |
| Min installation temperature | -20°C |
| Nominal power output | 50 W/m @ 230v |
| Outer jacket | HDPE |
| Total heating power | 1835 W |
| Voltage | 220 - 240 V |
