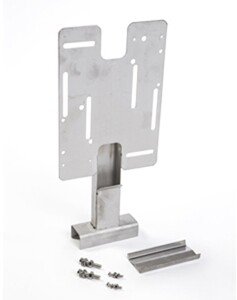

Raychem SB-100 Support Bracket for Junction Box/Thermostats
nVent RAYCHEM SB-XXX and JB-SB-26 are a range of stainless steel support brackets used to fix equipment such as thermostats or junction boxes on pipes or cable trays. The range allows different mounting positions, various junction box and thermostat sizes and protects the heating cable or sensor cable when exiting the insulation cladding. They include a set of M6 and/or M4 fixing screws, nuts, washers and spring lock washers for the fixation of one junction box or thermostat.
Stainless steel support bracket specially constructed to provide heating cable protection between pipe and junction box via a tubular leg for use with JB16-02, AT-TS-13, AT-TS-14 and RAYSTAT-CONTROL-10.
Technical specifications
Brand | nVent |
---|---|
Pipe temperature | Max 230 °C |
