Raychem HWAT-ECO Control Unit - Hot Water Maintenance

Raychem HWAT-ECO Control Unit - Hot Water Maintenance
Raychem HWAT-ECO Control Unit - Hot Water Maintenance

Quick Find: 498
Part Code: 875270-000

Free Delivery Available
£261.00 inc VAT
List Price: £285.50

Estimated delivery: 1 working days

Product overview

Variant N/A
Barcode 5017455010831
Weight 1.04 Kg

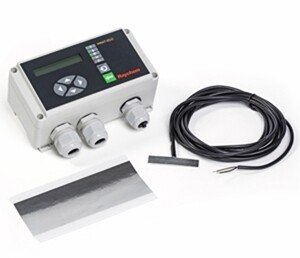

The HWAT-Eco is a smart control unit that limits the heat output of the self-regulating cables according to the specific requirements of the building. It combines the clock time functions with the boiler temperature in order to ensure that the system is used soley for temperature maintenance, thus avoiding superfluous heat production and minimising energy consumption. Compatible with HWAT-L/R/M heating cables. Nine building-specific programmes.

Technical specifications

Max. switching current20amp 230volt

Product downloads

Frequently asked questions

Can I use heat trace on plastic pipes?

Yes, when using trace heating on plastic pipes ensure that ATE- 180 aluminium tape is used to help disperse the heat around the pipe.

Read more

Can you design a full surface heating system for me?

Yes, utilising our in-house design facilities, we can design your complete trace heating requirement.

Read more

Do I have to allow extra heat for pumps and valves?

If the surface area of the pump is substantially greater than that of the adjoining pipework then extra heating cable may need to be considered (depending on wattage of cable installed). Pumps and ...

Read more

Do I have to spiral the trace heating onto the pipe?

Most applications can simply be straight traced, reducing costs of materials and installation time without compromising on operational requirements.

Read more

Do I need to use thermal insulation?

Yes, thermal insulation is required on all heat trace applications. Without insulation, surface heat losses can increase approximately 4-5 times.

Read more

Does my trace heating system require maintenance?

Generally, no maintenance of our trace heating systems is required but it is recommended that the system is checked for operational and electrical integrity periodically or prior to the winter or p...

Read more

How do I terminate the heating cable?

Full termination instructions are provided with all our heating tapes

Read more

How do I test my trace heating system is working properly?

System checks depend on the system installed, constant wattage systems can be fully checked for insulation resistance and continuity. Self regulating systems can only be checked for insulation resi...

Read more

What is heat tape for water pipes?

When water pipes are exposed to cold temperatures either outdoors, underground or in small spaces, you can protect them from freezing by wrapping them with heat tape. Heating tape is actually a cor...

Read more

What is Heat Trace?

This is used for a pipe freeze protection application. Electric heat tracing, heat tape or surface heating, is a system used to maintain or raise the temperature of pipes and vessels. Trace heat...

Read more

What is self regulating heating tape?

Self limiting / self regulating heating tape adjusts heat output to equal the heat loss from the pipe work. As pipe temperature falls the electrical conductivity of the semi-conductive core increas...
