Raychem 15XL2-ZH Self Regulating Trace Heating Cable (15W/m at 5°C)

Quick Find: 13473
Part Number: P000002114
List Price: £19.46
£17.52 inc VAT
Large order Bulk Discounts Available upon request
call us now on 01473 276672 to find out more!
WeightWeight 0.14 Kg

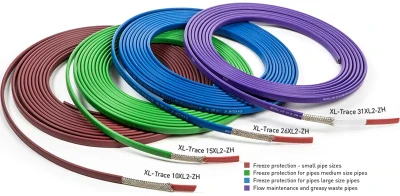

Low Smoke Zero Halogen Self-regulating Heating Cable

Raychem XL-Trace provides frost protection for pipes in areas exposed to sub-zero temperatures and ensures flow maintenance in grease waste line applications.

The self-regulating heating cable range, combined with pipe insulation, prevent water pipes, fire mains, sprinklers from freezing and grease waste lines from clogging up.

Developed specifically for use within commercial and residential buildings, XL-Trace's Low Smoke Zero Halogen materials ensure it is the safest solution for modern building design. For quick and easy installation, all XL-Trace cables are designed for use with the RayClic fast connection device.
The cables are warranted under the Raychem Extended Warranty Program providing 10 years warranty for registered installations. Additional warranties apply when installed by a Raychem Certified Pro.

Technical Specifications
Max Exposure Temp 65°C
Name XL2-ZH
Nominal Power Output 15 W/m at 5 °C
Products Price
Raychem RayClic-CE-02 Power Connection Raychem RayClic-CE-02 Power Connection
Quick Find: 463, Part Number: 235422-000
£33.44 inc VAT
Raychem AT-TS-13 Thermostat Raychem AT-TS-13 Thermostat
Quick Find: 494, Part Number: 728129-000
£91.36 inc VAT
Raychem RayClic-T-02 Connection Raychem RayClic-T-02 Connection
Quick Find: 464, Part Number: 441524-000
£53.52 inc VAT
Raychem RayClic-E-02  End Seal Raychem RayClic-E-02 End Seal
Quick Find: 469, Part Number: 224727-000
£7.43 inc VAT
Raychem RayClic-PS-02 Power Splice Connection Kit Raychem RayClic-PS-02 Power Splice Connection Kit
Quick Find: 467, Part Number: 716976-000
£67.44 inc VAT
Raychem RAYSTAT-ECO-10 Smart Thermostat for Frost Protection Raychem RAYSTAT-ECO-10 Smart Thermostat for Frost Protection
Quick Find: 497, Part Number: 145232-000
£216.36 inc VAT
Raychem RAYSTAT-CONTROL-10 Sensing Thermostat (0°C to 150°C) Raychem RAYSTAT-CONTROL-10 Sensing Thermostat (0°C to 150°C)
Quick Find: 496, Part Number: 828810-000
£211.80 inc VAT
Raychem AT-TS-14 Sensing Thermostat (0°C to 120°C) Raychem AT-TS-14 Sensing Thermostat (0°C to 120°C)
Quick Find: 495, Part Number: 648945-000
£91.36 inc VAT
Raychem RayClic-PT-02 Power T Connection Raychem RayClic-PT-02 Power T Connection
Quick Find: 465, Part Number: 636284-000
£71.40 inc VAT
Raychem RayClic-X-02 4 Way Cross Connection Raychem RayClic-X-02 4 Way Cross Connection
Quick Find: 468, Part Number: 001013-000
£69.74 inc VAT

Frequently Asked Questions

We make every effort in answering your questions. Below is a list of those questions we are frequently asked. Click on a question to expand its answer.

What is self regulating heating tape?

Self limiting / self regulating heating tape adjusts heat output to equal the heat loss from the pipe work. As pipe temperature falls the electrical conductivity of the semi-conductive core increas...

Read more

Can you design a full surface heating system for me?

Yes, utilising our in-house design facilities, we can design your complete trace heating requirement.

Read more

Can I use heat trace on plastic pipes?

Yes, when using trace heating on plastic pipes ensure that ATE- 180 aluminium tape is used to help disperse the heat around the pipe.

Read more

Do I need to use thermal insulation?

Yes, thermal insulation is required on all heat trace applications. Without insulation, surface heat losses can increase approximately 4-5 times.

Read more

Do I have to spiral the trace heating onto the pipe?

Most applications can simply be straight traced, reducing costs of materials and installation time without compromising on operational requirements.

Read more

How do I terminate the heating cable?

Full termination instructions are provided with all our heating tapes

Read more

Do I have to allow extra heat for pumps and valves?

If the surface area of the pump is substantially greater than that of the adjoining pipework then extra heating cable may need to be considered (depending on wattage of cable installed). Pumps and ...

Read more

Does my trace heating system require maintenance?

Generally, no maintenance of our trace heating systems is required but it is recommended that the system is checked for operational and electrical integrity periodically or prior to the winter or p...

Read more

How do I test my trace heating system is working properly?

System checks depend on the system installed, constant wattage systems can be fully checked for insulation resistance and continuity. Self regulating systems can only be checked for insulation resi...

Read more

What is Heat Trace?

This is used for a pipe freeze protection application. Electric heat tracing, heat tape or surface heating, is a system used to maintain or raise the temperature of pipes and vessels. Trace heat...

Read more

What is heat tape for water pipes?

When water pipes are exposed to cold temperatures either outdoors, underground or in small spaces, you can protect them from freezing by wrapping them with heat tape. Heating tape is actually a cor...

Read more
